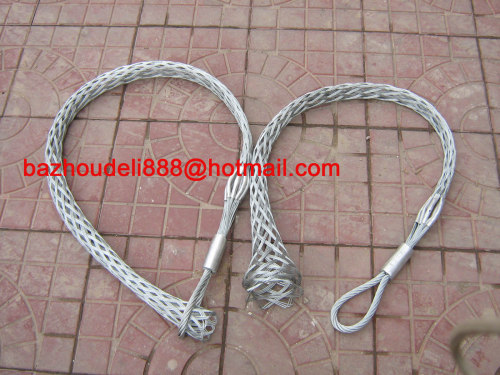

Pulling grip,Support grip,Cable grip, Pulling grip

Cable socks (also called cable grips or cable stockings) for utility, triplex, fibre optic, low voltage and high voltage cable pulling - includes single eye cable socks, double eye cable socks, lace up cable socks, non-conductive cable socks and open ended cable socks.

cable socks are manufactured from high tensile galvanised wire rope or stainless steel wire rope.

Cable socks provide an efficient method for cable installation and support within their load carrying capacity -

Single Eye Cable Socks

For straight forward pulling applications: eg pulling electric cables through underground ducts. The wire rope mesh has a "grip of iron" - the harder you pull, the tighter the grip.

No.	Applicable diameter	Rated load	Length
Scd-01	6-13mm	900 kg	300 mm
Scd-02	12-19mm	1590 kg	550 mm
Scd-03	19-25mm	2120 kg	600 mm
Scd-04	25-38mm	2560 kg	700 mm
Scd-05	7-12mm	300 kg	315 mm
Scd-06	13-18mm	400 kg	365 mm
Scd-07	18-24mm	600 kg	365 mm
Scd-08	25-35mm	700 kg	465 mm
Scd-09	35-48mm	1100 kg	535 mm
Scd-010	49-60mm	2000 kg	715 mm
Scd-011	60-75mm	2000 kg	830 mm
Scd-012	75-90mm	2500 kg	930 mm
Scd-013	90-115mm	2500 kg	1045 mm
Scd-014	110-135mm	3000 kg	1170 mm
Scd-015	130-150mm	3000 kg	1295 mm

Double Eye Cable Socks

This type is also used for pulling cables but allows the cable to pass completely through the sock. The double eye cable sock can also be supplied split and with a lace, so that it can be wrapped around the cable and then laced up (rather than inserting the cable from one end).

No.	Applicable diameter	Rated load	Length
Sdc-01	7-13mm	300Kg	315mm
Sdc-02	13-18mm	400 Kg	365mm
Sdc-03	18-25mm	600 Kg	465mm
Sdc-04	25-35mm	700 Kg	705mm
Sdc-05	35-48mm	1100 Kg	870mm
Sdc-06	48-60mm	2000 Kg	975mm
Sdc-07	60-75mm	2000 Kg	1110mm
Sdc-08	75-90mm	2500 Kg	1210mm
Sdc-09	90-115mm	2500 Kg	1350mm
Sdc-010	110-135mm	3000 Kg	1450mm
Sdc-011	130-150mm	3000 Kg	1600mm
